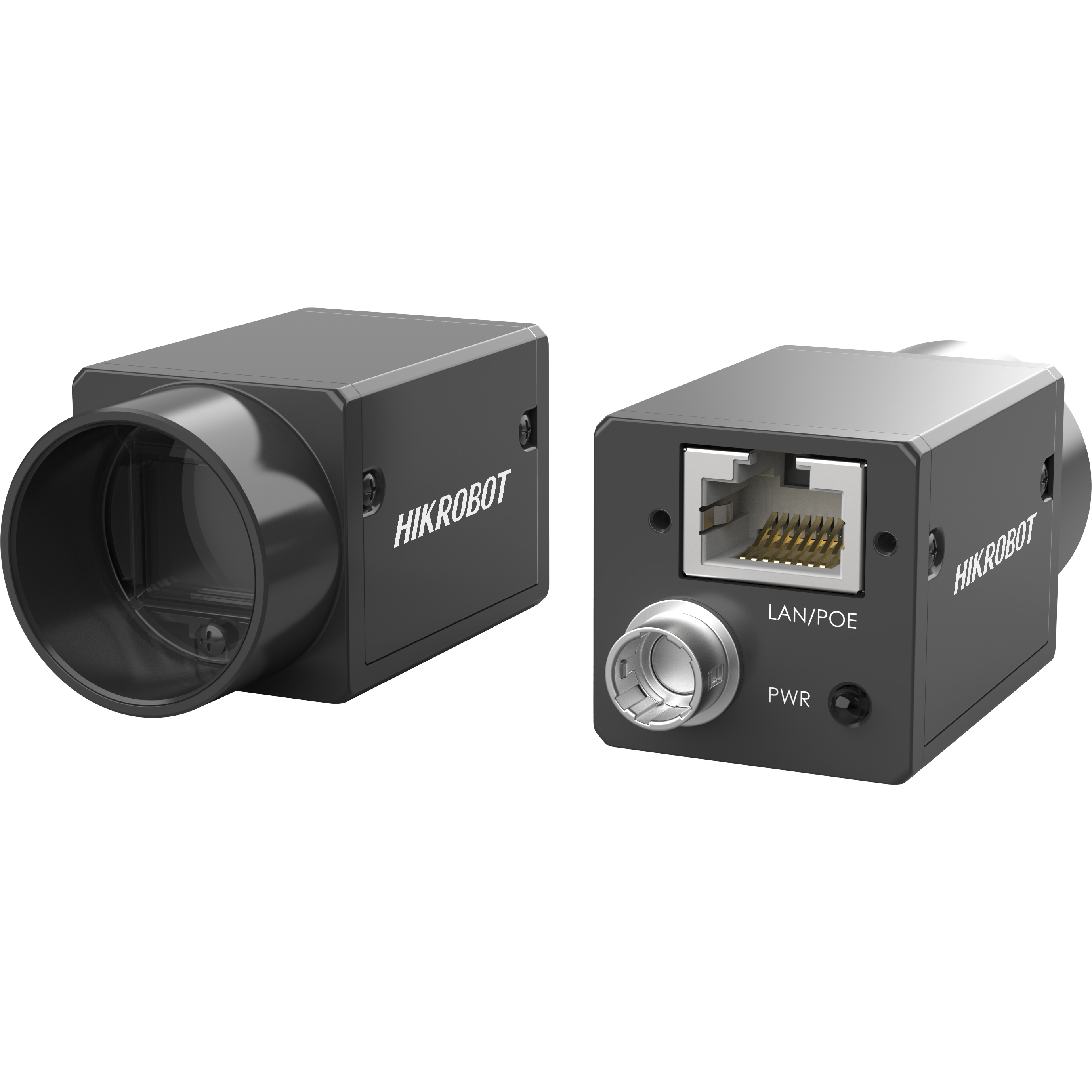

MV-CA013-20GC

Key Feature Adopts GigE interface and max. transmission distance of 100 meters without relay. Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc. Up to 128 MB local memory for burst transmission and retransmission. Supports hardware trigger, software trigger, etc. Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocol and standard.   Available Model MV-CA013-20GC Dimension *The data herein may vary based on t

상세 스펙

시리즈	CA AreaScan
제조사	Hikvision
센서 제조사	onsemi
센서	OnSemi PYTHON1300
센서 크기	6.1 x 4.9 mm
픽셀 크기	4.8 µm
해상도	1280 × 1024
속도	90 fps
셔터	Global
컬러/모노	Mono
인터페이스	GigE
마운트	C
제품 크기	29 × 29 × 42 (1.1" × 1.1" × 1.7")
무게	Approx. 68 g (0.15 lb.)
전원	12 VDC, supports PoE
소비전력	2.7
