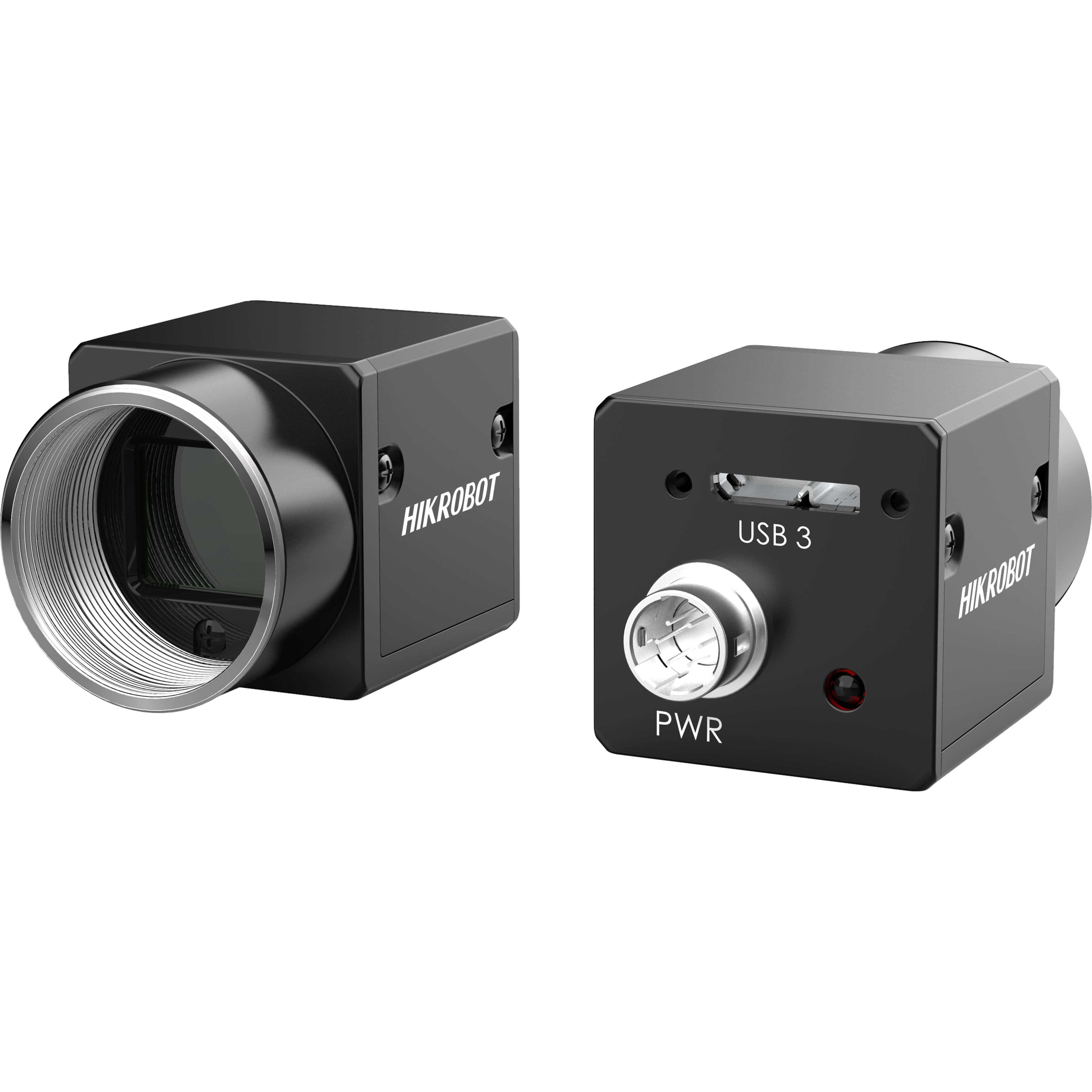

MV-CA016-10UC

Key Feature Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc. Supports hardware triggering, software triggering and free run mode. Adopts M2 screw holes for securing cable that connects USB3.0 interface. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.   Available Model MV-CA016-10UC Dimension *The data herein may vary based on the environment, objects and other various factor

MV-CA016-10UC

상세 스펙

시리즈CA AreaScan
제조사Hikvision
센서 제조사Sony
센서Sony® IMX273
센서 크기5.0 x 3.7 mm
픽셀 크기3.45 µm
해상도1440 × 1080
속도249.1 fps
셔터Global
컬러/모노Mono
인터페이스USB3.0
마운트C
제품 크기29 × 29 × 30 (1.14" × 1.14" × 1.18")
무게Approx. 56 g (0.12 lb.)
전원12 VDC, supports USB 3.0 power supply
소비전력2.8

동일 센서 제품

Sony® IMX273

제품 문의

견적 및 기술 문의는 아래로 연락해 주세요.

견적 문의하기sales@dnsvts.com

다운로드

빠른 스펙

해상도1440 × 1080
속도249.1 fps
인터페이스USB3.0
셔터Global
센서Sony® IMX273
