홈›Camera›MV-CA017-10GC
HikvisionAreaScan

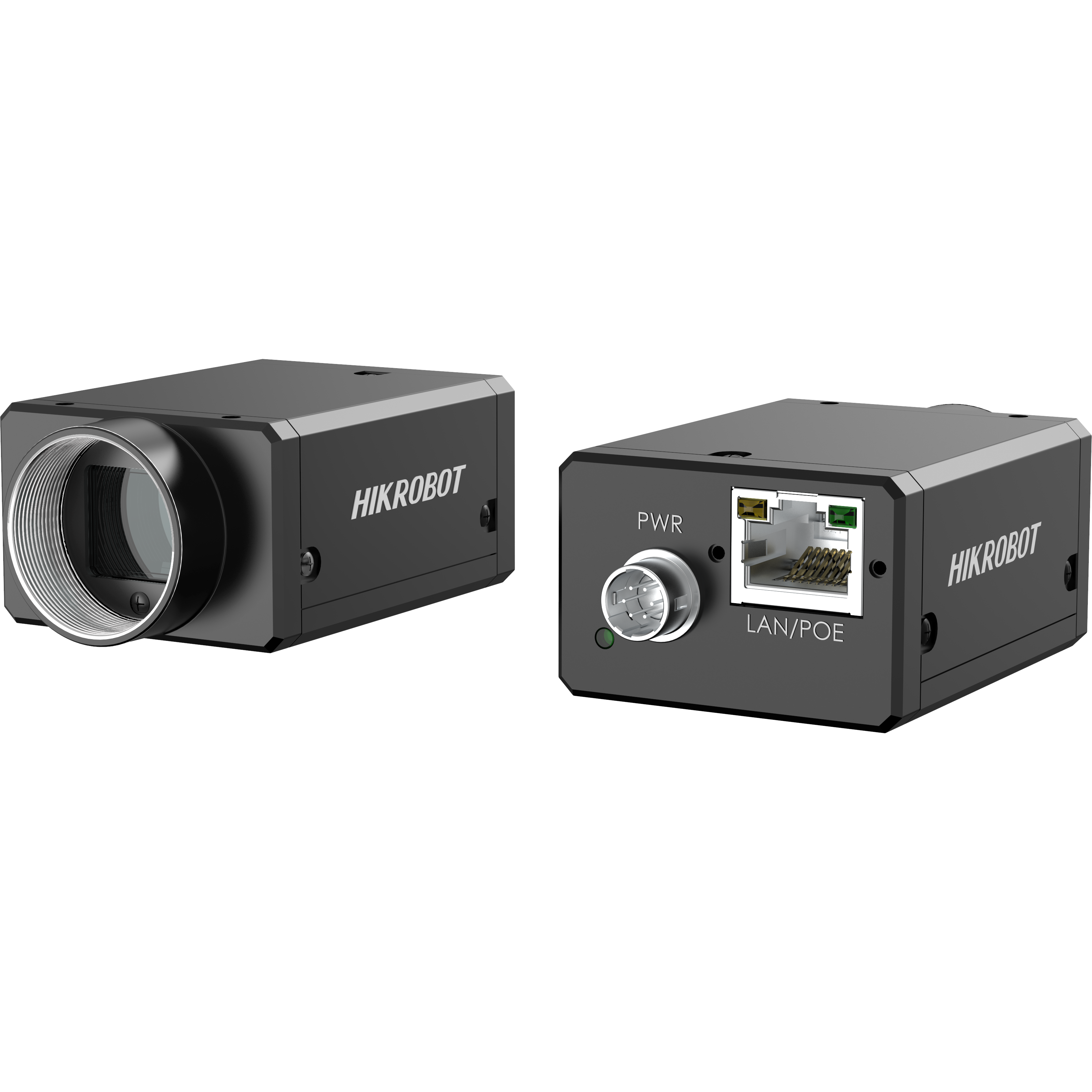

MV-CA017-10GC

Key Feature Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc. Supports 2D noise reduction function. Supports high sensitivity mode and high full well mode. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.   Available Model MV-CA017-10GC Dimension *The data herein may vary based on the e

MV-CA017-10GC

상세 스펙

시리즈CA AreaScan
제조사Hikvision
센서 제조사Sony
센서Sony® IMX432
센서 크기14.5 x 9.9 mm
픽셀 크기9 µm
해상도1608 × 1104
속도68.5 fps
셔터Global
컬러/모노Mono
인터페이스GigE
마운트C
제품 크기29 × 44 × 59 (1.1" × 1.7" × 2.3")
무게Approx. 100 g (0.22 lb.)
전원12 VDC, supports PoE
소비전력4.8

동일 센서 제품

Sony® IMX432

제품 문의

견적 및 기술 문의는 아래로 연락해 주세요.

견적 문의하기sales@dnsvts.com

다운로드

빠른 스펙

해상도1608 × 1104
속도68.5 fps
인터페이스GigE
셔터Global
센서Sony® IMX432
