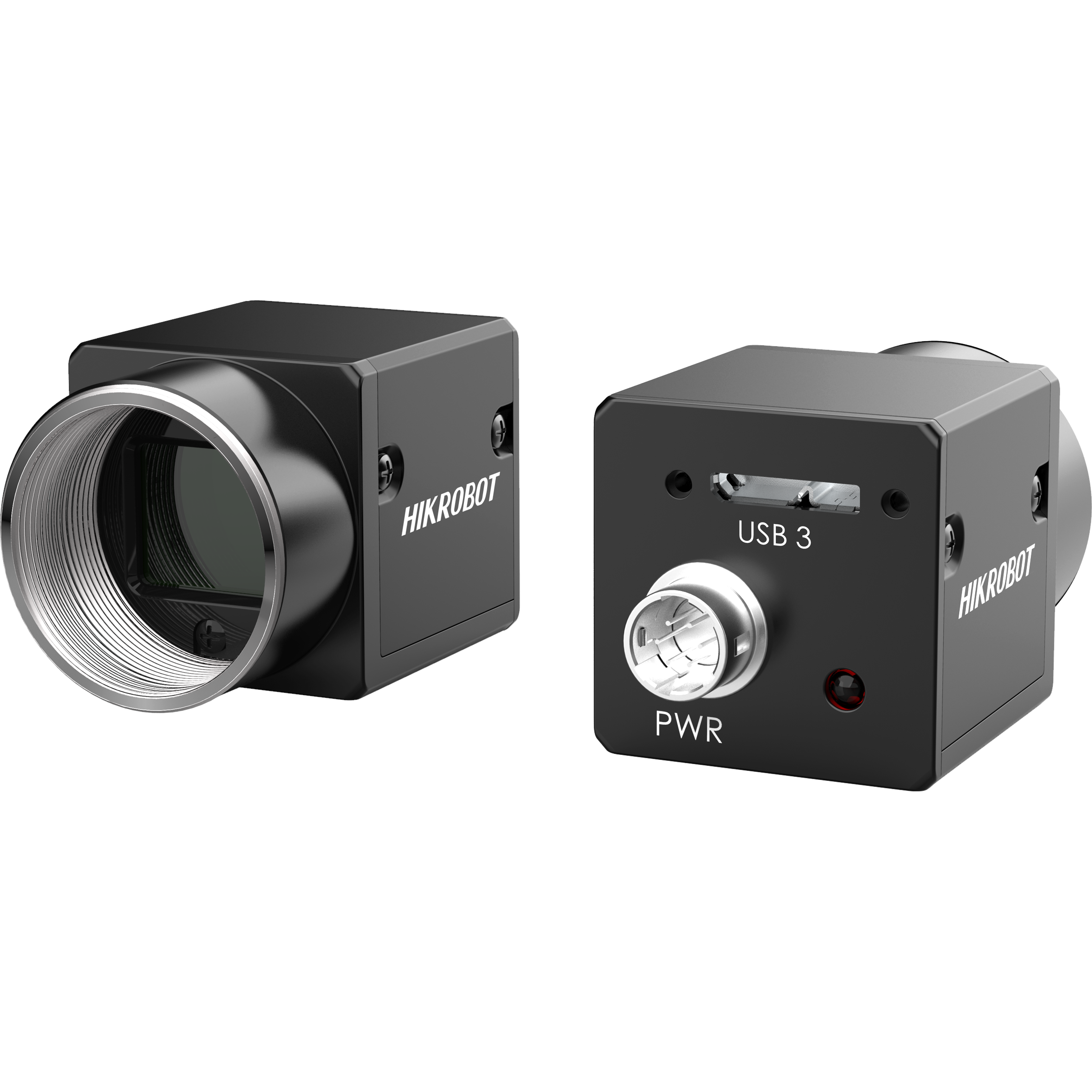

MV-CA050-20UM

Key Feature Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc. Supports hardware triggering, software triggering and free run mode. Adopts M2 screw holes for securing cable that connects USB3.0 interface. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.   Available Model MV-CA050-20UM Dimension *The data herein may vary based on the environment, objects and other various factor

상세 스펙

시리즈	CA AreaScan
제조사	Hikvision
센서	PYTHON5000
센서 크기	12.4 x 9.8 mm
픽셀 크기	4.8 µm
해상도	2592 × 2048
속도	71.8 fps
셔터	Global
컬러/모노	Mono
인터페이스	USB3.0
마운트	C
제품 크기	29 × 29 × 30 (1.1" × 1.1" × 1.2")
무게	Approx. 56 g (0.12 lb.)
전원	12 VDC, supports USB3.0 power supply
소비전력	3.5
