HikvisionAreaScan

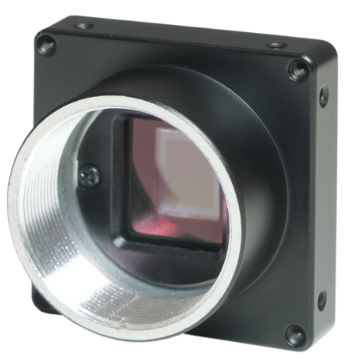

MV-CB060-10UM-C
Key Feature Compact design for flexible installation. Supports auto or manual adjustment of gain, exposure time, and white balance, and manual adjustment of Gamma correction, LUT, etc. Supports HDR function with different exposure time and gain. Supports hardware trigger, software trigger, free run, etc. Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard. Available Model MV-CB060-10UM-C Dimension *The data herein may v

상세 스펙
| 시리즈 | CB Board Level Camera |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX178 |
| 센서 크기 | 7.4 x 4.9 mm |
| 픽셀 크기 | 2.4 µm |
| 해상도 | 3072 × 2048 |
| 속도 | 60.9 fps |
| 셔터 | Rolling |
| 컬러/모노 | Mono |
| 인터페이스 | USB 3.0 |
| 마운트 | C |
| 제품 크기 | 35 × 35 × 8.6 (1.4" × 1.4" × 0.3") |
| 무게 | Approx. 30 g (0.07 lb.) |
| 전원 | USB 3.0 power supply |
| 소비전력 | 1.5 |
빠른 스펙
해상도3072 × 2048
속도60.9 fps
인터페이스USB 3.0
셔터Rolling
센서Sony® IMX178
