HikvisionAreaScan

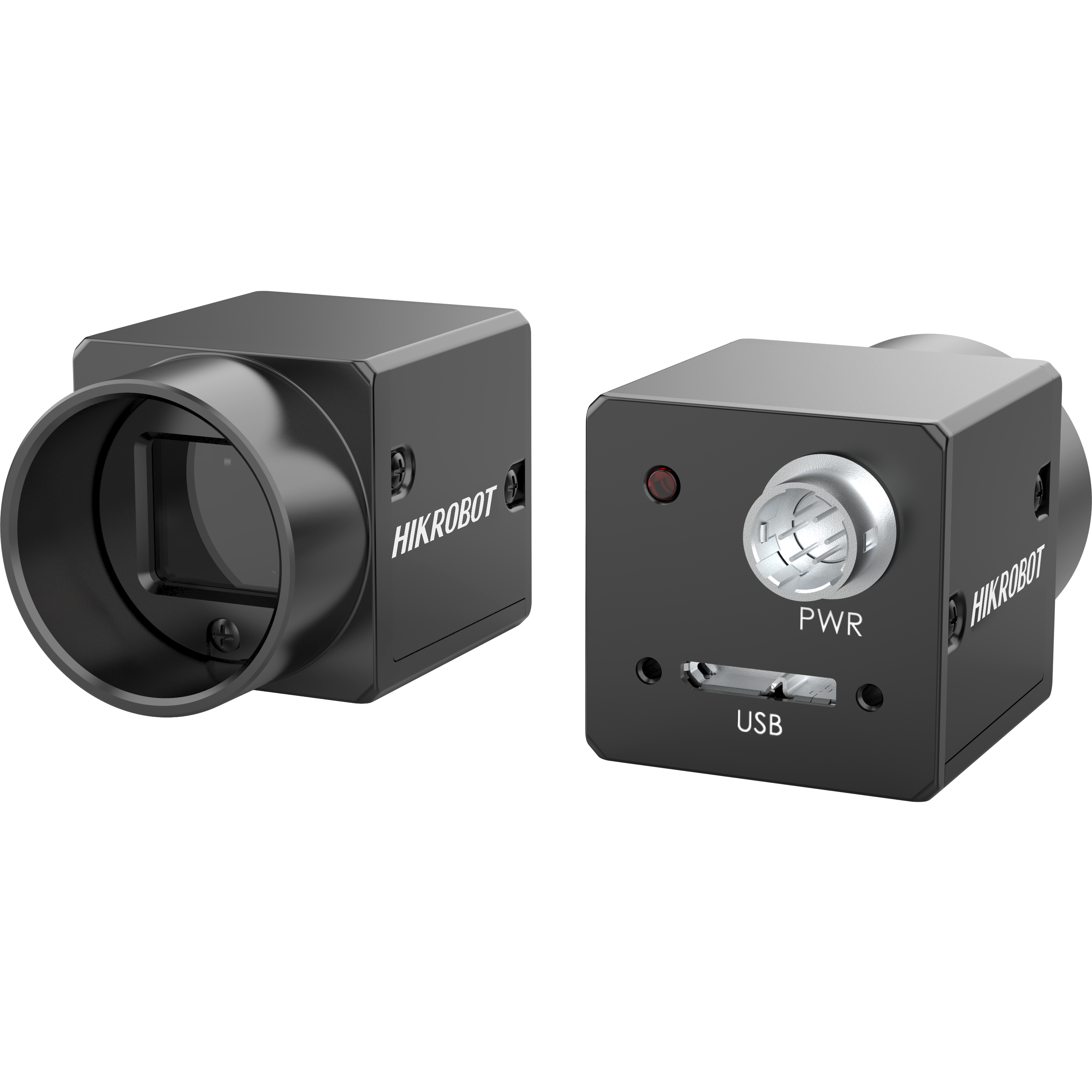

MV-CE120-10UC
Key Feature Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc. Supports hardware triggering, software triggering and free run mode. Adopts M2 screw holes for securing cable that connects USB3.0 interface. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard. Available Model MV-CE120-10UC Dimension *The data herein may vary based on the environment, objects and other various factor
상세 스펙
| 시리즈 | CE AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX226 |
| 센서 크기 | 7.4 x 5.6 mm |
| 픽셀 크기 | 1.85 µm |
| 해상도 | 4000 × 3036 |
| 속도 | 31.9 fps |
| 셔터 | Rolling |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 80 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, USB3.0 power supply |
| 소비전력 | 3.42 |
빠른 스펙
해상도4000 × 3036
속도31.9 fps
인터페이스USB3.0
셔터Rolling
센서Sony® IMX226
