HikvisionAreaScan

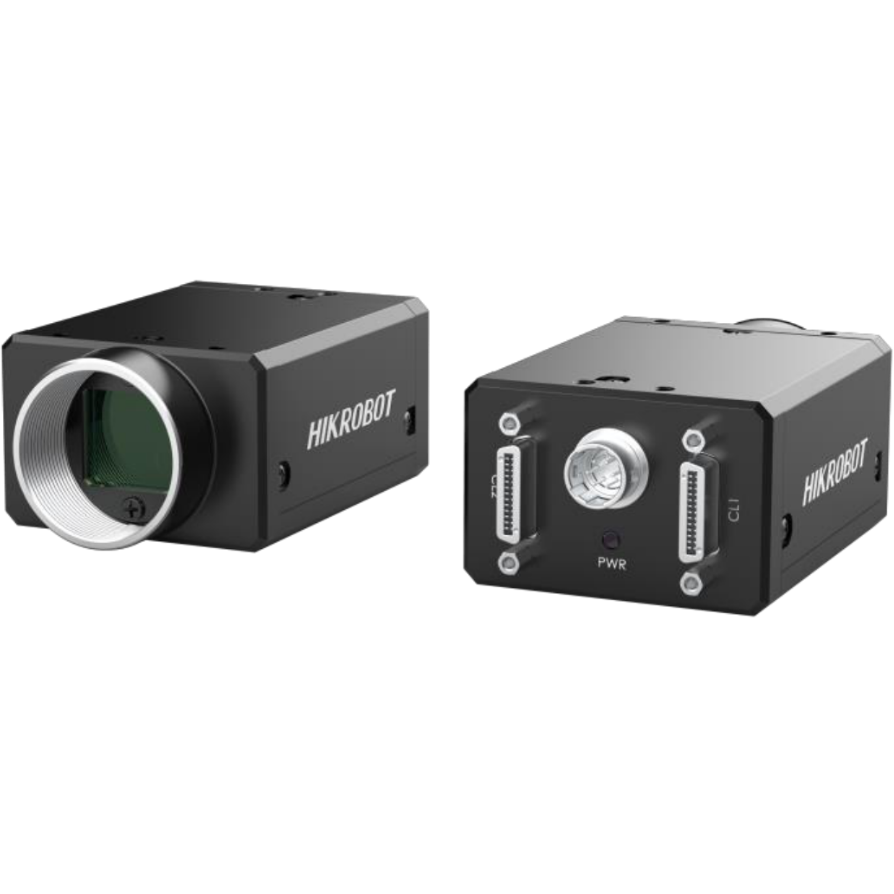

MV-CH040-A0CM
Key Feature Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc. Supports customized ROI and horizontal and vertical reverse image output. Supports hardware trigger, software trigger, free run, and supports triggering via Camera Link frame grabber. Supports Base, Medium, Full, 80-bit configuration mode. Compatible with Camera Link V2.0 Protocol and GenlCam Standard. Available Model MV-CH040-A0CM Dimension *The data herein may vary based on the environment
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 크기 | 11.3 x 11.3 mm |
| 픽셀 크기 | 5.5 µm |
| 해상도 | 2048 × 2048 |
| 속도 | 180 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | Camera Link |
| 마운트 | C |
| 제품 크기 | 44 × 29 × 59 (1.7" × 1.1" × 2.3") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports PoCL |
| 소비전력 | 3.6 |
빠른 스펙
해상도2048 × 2048
속도180 fps
인터페이스Camera Link
셔터Global
센서-
