HikvisionAreaScan

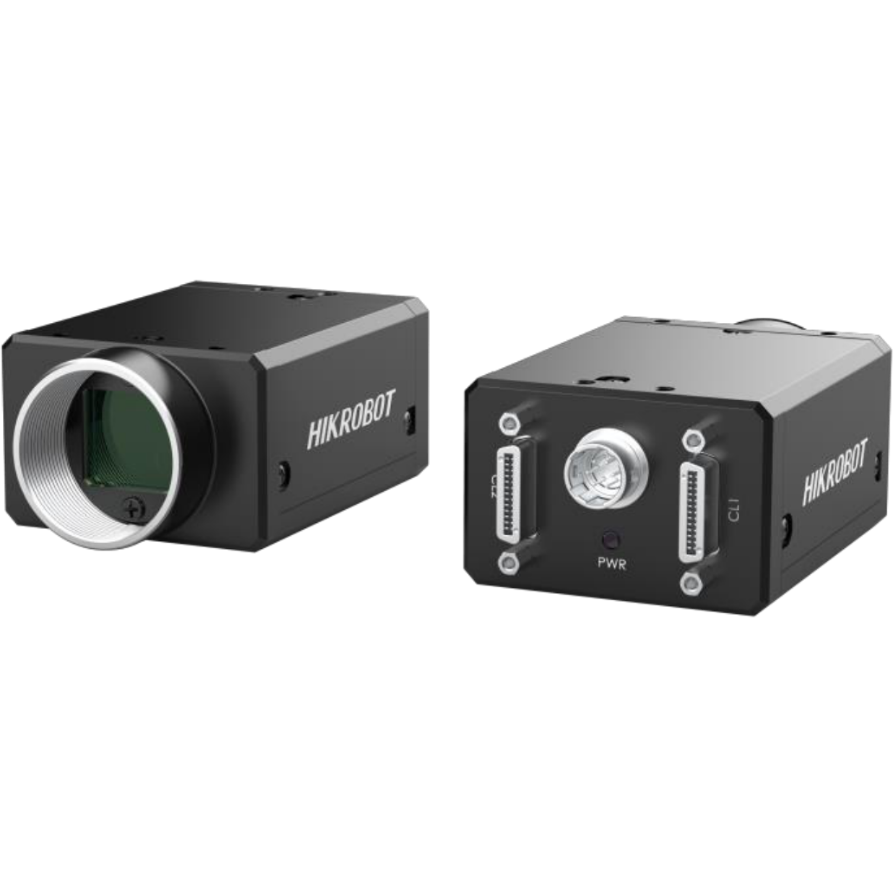

MV-CH050-10CC
Key Feature Adopts Global CMOS sensor providing high signal-to-noise ratio, wide dynamic range, and high-quality image. Resolution of 2432 × 2048 and pixel size of 3.45. Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface. Adopts compact design with mounting holes for flexible mounting. Available Model MV-CH050-10CC Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shal
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX250 |
| 센서 크기 | 8.4 x 7.1 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 2432 × 2048 |
| 속도 | 140 fps |
| 셔터 | Global |
| 컬러/모노 | Color |
| 인터페이스 | Camera Link |
| 마운트 | C |
| 제품 크기 | 44 × 29 × 59 (1.7" × 1.1" × 2.3") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC |
| 소비전력 | 3.41 |
빠른 스펙
해상도2432 × 2048
속도140 fps
인터페이스Camera Link
셔터Global
센서Sony® IMX250
