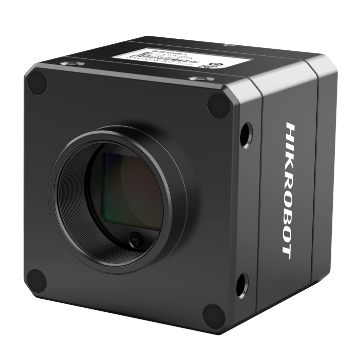

MV-CH050-90XC-C-NN

Key Feature Resolution of 2592 × 2160, pixel size of 2.5. Adopts Global CMOS sensor to provide high dynamic range, SNR, and high-quality image. Supports LSC correction, super palette, CCM, and SuperBayer. Adopts CXP-6 interface to transmit data. Supports Off, Once, and Continuous exposure modes. Compatible with CoaXPress Protocol and GenlCam Standard.   Available Model MV-CH050-90XC-C-NN Dimension *The data herein may vary based on the environment, objects and other vari

상세 스펙

시리즈	CH AreaScan
제조사	Hikvision
센서 제조사	Gpixel
센서	Gpixel GMAX2505
센서 크기	6.5 x 5.4 mm
픽셀 크기	2.5 µm
해상도	2592 × 2160
속도	213 fps
셔터	Global
컬러/모노	Color
인터페이스	CoaXPress
마운트	C
제품 크기	50 × 50 × 45 (2.0" × 2.0" × 1.8")
무게	Approx. 220 g (0.5 lb.)
전원	9 VDC to 24 VDC, CXP-1 supports PoCXP
소비전력	4.8
