HikvisionAreaScan

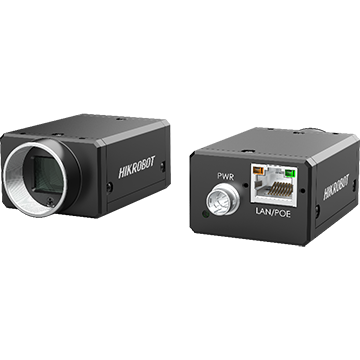

MV-CH100-60GC
Key Feature Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CH100-60GC Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences a
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 | Stacked BSI |
| 센서 크기 | 14.1 x 8.5 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 4096 × 2460 |
| 속도 | 11.6 fps |
| 셔터 | Global |
| 컬러/모노 | Color |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 44 × 59 (1.1" × 1.7" × 2.3") |
| 무게 | Approx. 92 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports PoE |
| 소비전력 | 3.0 |
빠른 스펙
해상도4096 × 2460
속도11.6 fps
인터페이스GigE
셔터Global
센서Stacked BSI
