HikvisionAreaScan

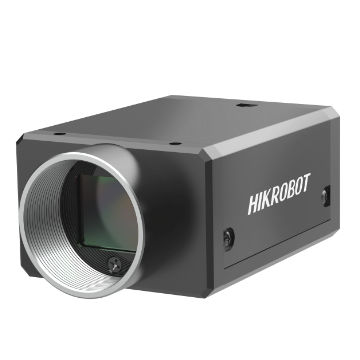

MV-CH100-60UM
Key Feature Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc. Supports customized ROI, horizontal and vertical reverse image output. Supports hardware trigger, software trigger, free run, etc. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard. Available Model MV-CH100-60UM Dimension *The data herein may vary based on the environment, objects and other various factors

상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 | Stacked BSI |
| 센서 크기 | 14.1 x 8.5 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 4096 × 2460 |
| 속도 | 36 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 44 × 59 (1.1" × 1.7" × 2.3") |
| 무게 | Approx. 113 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB power supply |
| 소비전력 | 3.6 |
빠른 스펙
해상도4096 × 2460
속도36 fps
인터페이스USB3.0
셔터Global
센서Stacked BSI
