HikvisionAreaScan

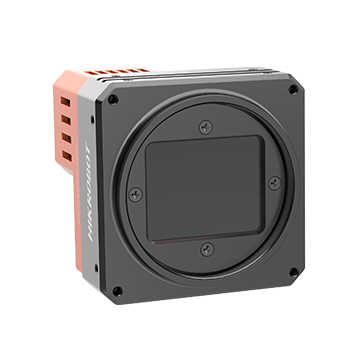

MV-CH1010-10CM-M72-NF
Key Feature Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction. Supports FFC correction function. Provides camera with fan or TEC to meet different working temperature requirements. Supports 16-bit ADC output with high acquisition accuracy and wide dynamic range. Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface. Compatible with Camera Link V2.0 Protocol, GenlCam Standard, and the frame grabber
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX461 |
| 센서 크기 | 43.8 x 32.9 mm |
| 픽셀 크기 | 3.76 µm |
| 해상도 | 11648 × 8740 |
| 속도 | 8.1 fps |
| 셔터 | Rolling |
| 컬러/모노 | Mono |
| 인터페이스 | Camera Link |
| 마운트 | M72 |
| 제품 크기 | Camera with fan: 90 × 90 × 71.5 (3.5" × 3.5" × 2.8") Camera with TEC: 100 × 100 × 87.2 (3.9" × 3.9" × 3.4") |
| 무게 | Camera with fan: Approx. 790 g (1.7 lb.) Camera with TEC: Approx. 1.7 kg (3.7 lb.) |
| 전원 | Camera with fan: 12 VDC to 24 VDC; Camera with TEC: 24 VDC |
| 소비전력 | 14 |
빠른 스펙
해상도11648 × 8740
속도8.1 fps
인터페이스Camera Link
셔터Rolling
센서Sony® IMX461
