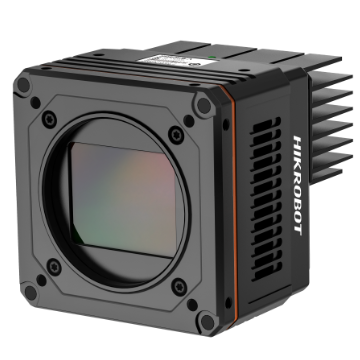

MV-CH1030-90TM-M58S-NN

Key Feature Resolution of 11276 × 9200, pixel size of 3.2. Supports auto or manual adjustment of exposure time and white balance, and manual adjustment of gain, Gamma correction, LUT, etc. Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay. Adopts installation holes for flexible installation. Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.   Available Model MV-CH1030-90TM-M58S-NN Dim

상세 스펙

시리즈	CH AreaScan
제조사	Hikvision
센서 제조사	Gpixel
센서	Gpixel GMAX32103
센서 크기	36.0 x 29.4 mm
픽셀 크기	3.2 µm
해상도	11264 × 9200
속도	11 fps
셔터	Global
컬러/모노	Mono
인터페이스	10GigE
마운트	M58
제품 크기	84 × 84 × 92.5 (3.3" × 3.3" × 3.6")
무게	738 g (1.6 lb.)
전원	12 VDC to 24 VDC
소비전력	12.6
