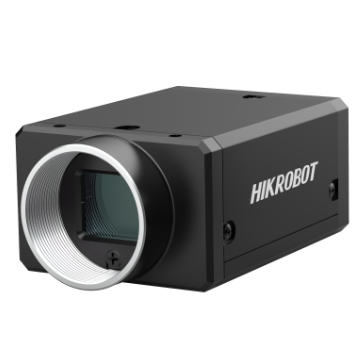

MV-CH120-10UC(EoL)

Key Feature Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc. Supports hardware triggering, software triggering and free run mode. Adopts M2 screw holes for securing cable that connects USB3.0 interface. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.   Available Model MV-CH120-10UC(EoL) Dimension *The data herein may vary based on the environment, objects and other various f

상세 스펙

시리즈	CH AreaScan
제조사	Hikvision
센서 제조사	Sony
센서	Sony® IMX304
센서 크기	14.1 x 10.3 mm
픽셀 크기	3.45 µm
해상도	4096 × 3000
속도	23.1 fps
셔터	Global
컬러/모노	Mono
인터페이스	USB3.0
마운트	C
제품 크기	44 × 29 × 59 (1.7" × 1.1" × 2.3")
무게	Approx. 100 g (0.2 lb.)
전원	12 VDC, supports USB3.0 power supply
소비전력	3.5
