HikvisionAreaScan

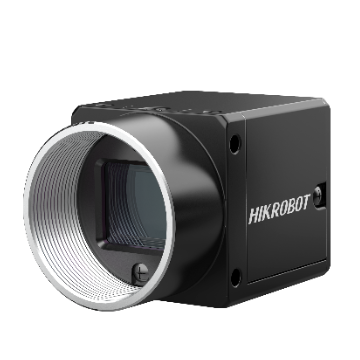

MV-CH120-10UM
Key Feature Supports LSC, Sequencer, passive transmission, Super Bayer, Super Palette, etc. Compact design with mounting holes on panels for flexible mounting from 4 sides. Supports hardware trigger, software trigger, free run, etc. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard. Available Model MV-CH120-10UM Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROB
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX304 |
| 센서 크기 | 14.1 x 10.3 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 4096 × 3000 |
| 속도 | 30.5 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 80 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| 소비전력 | 2.9 |
빠른 스펙
해상도4096 × 3000
속도30.5 fps
인터페이스USB3.0
셔터Global
센서Sony® IMX304
