HikvisionAreaScan

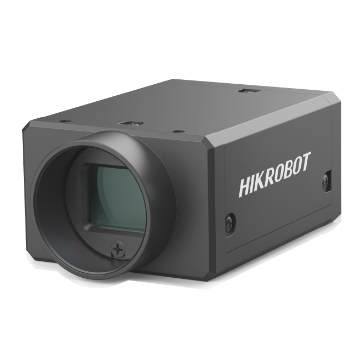

MV-CH120-11UC
Key Feature Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc. Supports hardware triggering, software triggering and free run mode. Supports customized ROI, and horizontal and vertical reverse image output. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard. Available Model MV-CH120-11UC Dimension *The data herein may vary based on the environment, objects an
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX304 |
| 센서 크기 | 14.1 x 10.3 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 4096 × 3000 |
| 속도 | 30.3 fps |
| 셔터 | Global |
| 컬러/모노 | Color |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 44 × 29 × 59 (1.7" × 1.1" × 2.3") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB power supply |
| 소비전력 | 4.7 |
빠른 스펙
해상도4096 × 3000
속도30.3 fps
인터페이스USB3.0
셔터Global
센서Sony® IMX304
