HikvisionAreaScan

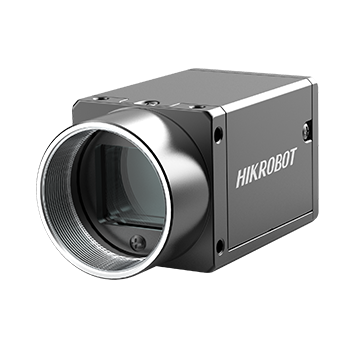

MV-CH120-60GC V5
Key Feature Compact design with mounting holes on panels for flexible mounting from 4 sides. Supports auto or manual adjustment of gain and exposure time, and LUT and Gamma correction function. Supports LSC, Sequencer, passive transmission, etc. Supports functions like white balance, CCM, Super Palette, and Super Bayer to provide high-quality images. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 | Stacked BSI |
| 센서 크기 | 14.1 x 10.3 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 4096 × 3000 |
| 속도 | 10 fps |
| 셔터 | Global |
| 컬러/모노 | Color |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 42 (1.1" × 1.1" × 1.7") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports PoE |
| 소비전력 | 1.7 |
빠른 스펙
해상도4096 × 3000
속도10 fps
인터페이스GigE
셔터Global
센서Stacked BSI
