HikvisionAreaScan

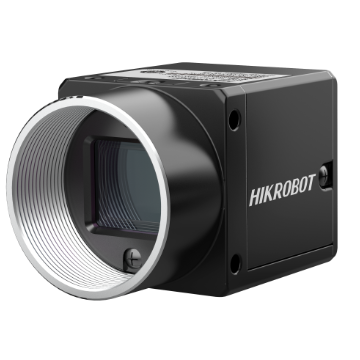

MV-CH120-60UM
Key Feature Adopts new hardware platform to optimize logical resource and reduce power consumption. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc. Supports CCM, Sequencer, Super Bayer, Super Palette, etc. Adopts brand new structure design and supports installation from four sides. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard. Available Model MV-CH120-60UM Dim
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 | Stacked BSI |
| 센서 크기 | 14.1 x 10.3 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 4096 × 3000 |
| 속도 | 30.7 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 80 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| 소비전력 | 2.2 |
빠른 스펙
해상도4096 × 3000
속도30.7 fps
인터페이스USB3.0
셔터Global
센서Stacked BSI
