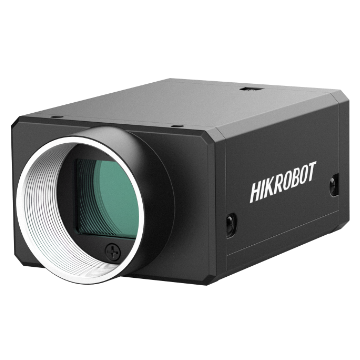

HikvisionAreaScan
MV-CH120-60VC
Key Feature Adopts dual USB 3.0 interfaces to transmit data. Adopts new hardware platform to optimize logical resource and reduce power consumption. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, and Sequencer, etc. Supports flexible installation with mounting holes on both top and bottom panels. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and the standard. Available Model MV-C
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 | Stacked BSI |
| 센서 크기 | 14.1 x 10.3 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 4096 × 3000 |
| 속도 | 60.2 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 44 × 59 (1.1" × 1.7" × 2.3") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| 소비전력 | 3.7 |
빠른 스펙
해상도4096 × 3000
속도60.2 fps
인터페이스USB3.0
셔터Global
센서Stacked BSI
