HikvisionAreaScan

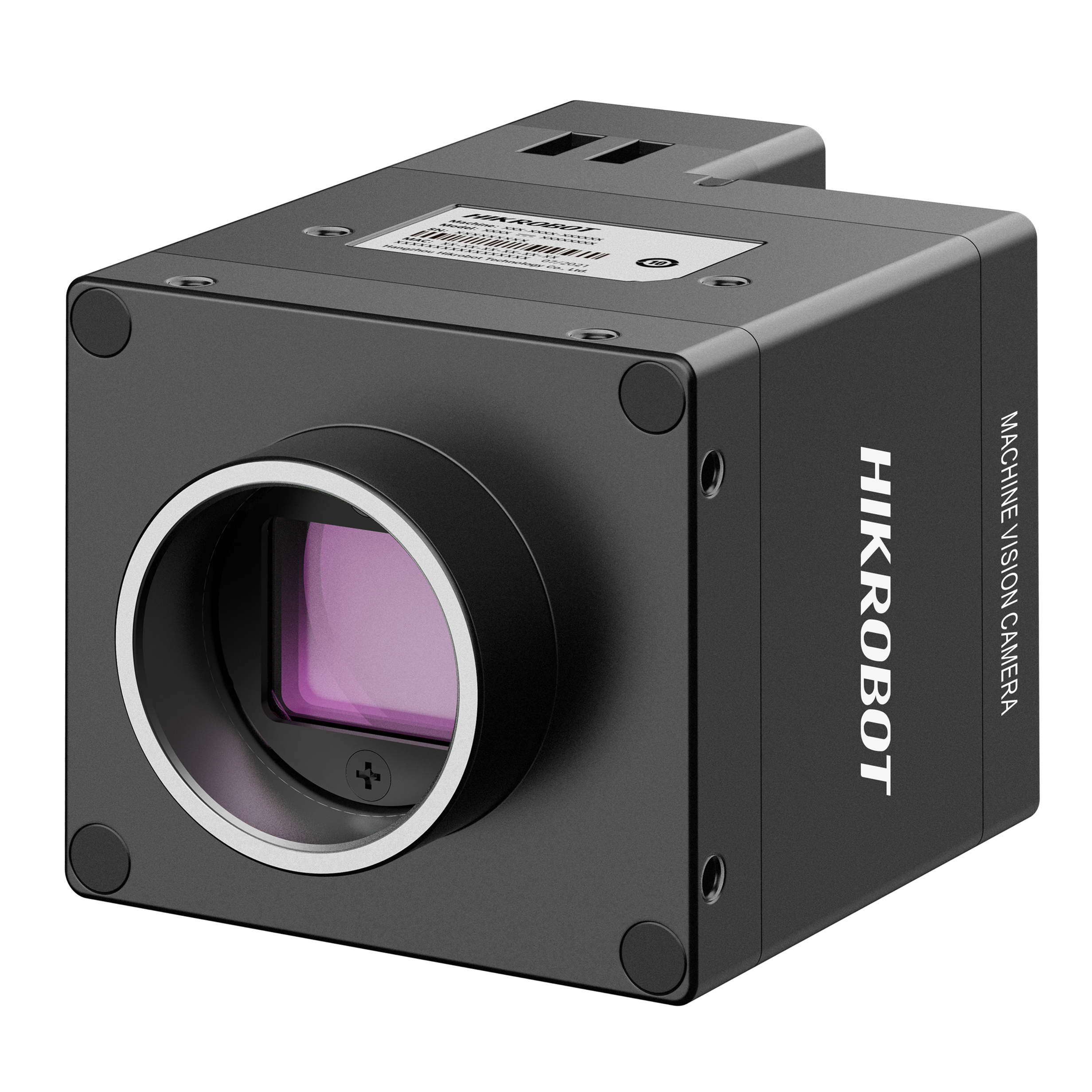

MV-CH120-90TM-C-NF
Key Feature Resolution of 4096 × 3072, pixel size of 3.4. Compatible with C lens. Adopts 10 GigE interface providing maximum transmission distance of 100 meters. Provides mounting holes on panels for flexible installation. Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols. Available Model MV-CH120-90TM-C-NF Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT s
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Gpixel |
| 센서 | Gpixel GMAX3412 |
| 센서 크기 | 13.9 x 10.4 mm |
| 픽셀 크기 | 3.4 µm |
| 해상도 | 4096 × 3072 |
| 속도 | 94 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | 10GigE |
| 마운트 | C |
| 제품 크기 | 50 × 45 × 68.6 (2.0" × 1.8" × 2.7") |
| 무게 | Approx. 212 g (0.5 lb.) |
| 전원 | 9 VDC to 24 VDC |
| 소비전력 | 10.2 |
빠른 스펙
해상도4096 × 3072
속도94 fps
인터페이스10GigE
셔터Global
센서Gpixel GMAX3412
