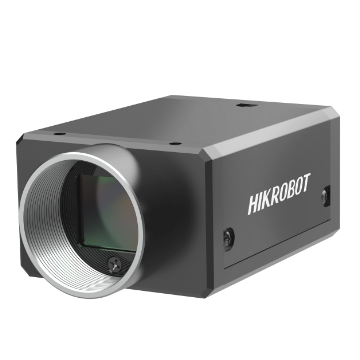

MV-CH140-60UM

Key Feature Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT correction, etc. Supports customized ROI, horizontal and vertical reverse image output. Supports hardware trigger, software trigger, free run. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.   Available Model MV-CH140-60UM Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKRO

MV-CH140-60UM

상세 스펙

시리즈CH AreaScan
제조사Hikvision
센서Stacked BSI
센서 크기14.1 x 8.5 mm
픽셀 크기3 µm
해상도4708 × 2824
속도27 fps
셔터Global
컬러/모노Mono
인터페이스USB3.0
마운트C
제품 크기29 × 44 × 59 (1.1" × 1.7" × 2.3")
무게Approx. 113 g (0.2 lb.)
전원9 VDC to 24 VDC, supports USB 3.0 power supply
소비전력4.0

동일 센서 제품

Stacked BSI

제품 문의

견적 및 기술 문의는 아래로 연락해 주세요.

견적 문의하기sales@dnsvts.com

다운로드

빠른 스펙

해상도4708 × 2824
속도27 fps
인터페이스USB3.0
셔터Global
센서Stacked BSI
