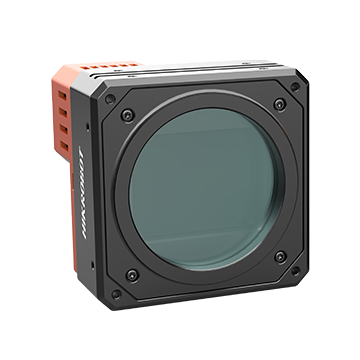

MV-CH1510-11XC-M72-TF

Key Feature Resolution of 14208 × 10640, pixel size of 3.76. Adopts Rolling CMOS to provide high dynamic range, SNR, and high-quality image. Supports the flat field correction. Supports TEC mode, and exposure time of up to 10 seconds. Supports 16-bit ADC output with high-precision sampling and high dynamic range.are based on the protocol and standard. Adopts CXP-6 interface to transmit data.   Available Model MV-CH1510-11XC-M72-TF Dimension *The data herein may vary bas

상세 스펙

시리즈	CH AreaScan
제조사	Hikvision
센서 제조사	Sony
센서	Sony® IMX411
센서 크기	53.4 x 40.0 mm
픽셀 크기	3.76 µm
해상도	14208 × 10640
속도	6.2 fps
셔터	Rolling
컬러/모노	Color
인터페이스	CoaXPress
마운트	M72
제품 크기	Camera with fan: 100 × 100 × 74.3 (3.9" × 3.9" × 2.9") Camera with TEC: 120 × 120 × 84.6 (4.7" × 4.7" × 3.3")
무게	Camera with fan: Approx. 1.0 kg (2.2 lb.) Camera with TEC: Approx. 1.9 kg (4.2 lb.)
전원	Camera with fan: 12 VDC to 24 VDC Camera with TEC: 24 VDC
소비전력	21
