HikvisionAreaScan

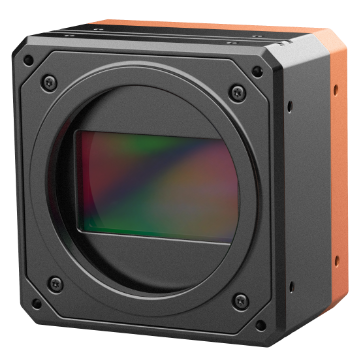

MV-CH1520-90GM-M72-NN
Key Feature Resolution of 16320 × 9200, pixel size of 3.2. Max. frame rate in non-compressed mode: 0.8 fps, max. frame rate in compressed mode of JPEG format: 5 fps. Adopts Global CMOS sensor to provide high dynamic range, SNR, and high-quality image Adopts GigE interface and max. transmission distance of 100 meters. Compatible with GenlCam Standard. Supports LSC to improve image quality. Available Model MV-CH1520-90GM-M72-NN Dimension *The data herein may vary based o

상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Gpixel |
| 센서 | Gpixel GMAX32152 |
| 센서 크기 | 52.2 x 29.4 mm |
| 픽셀 크기 | 3.2 µm |
| 해상도 | 16320 × 9200 |
| 속도 | 0.8 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | GigE |
| 마운트 | M72 |
| 무게 | Approx. 856 g (1.9 lb.) |
| 전원 | 12 VDC to 24 VDC |
| 소비전력 | 9 |
빠른 스펙
해상도16320 × 9200
속도0.8 fps
인터페이스GigE
셔터Global
센서Gpixel GMAX32152
