HikvisionAreaScan

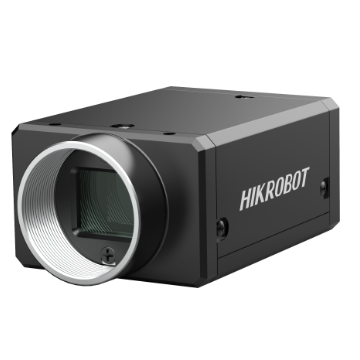

MV-CH160-60GM
Key Feature Resolution of 4000 × 4000, pixel size of 3.2. Adopts GigE interface and max. transmission distance of 100 meters without relay. Easy and flexible installation, with mounting holes on both its top and bottom panels. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CH160-60GM Dimension *The data herein may vary based on the environment, objects and other various factors, and H
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 | HK |
| 센서 크기 | 12.8 x 12.8 mm |
| 픽셀 크기 | 3.2 µm |
| 해상도 | 4000 × 4000 |
| 속도 | 7.25 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 44 × 59 (1.1" × 1.7" × 2.3") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 26 VDC, supports PoE |
| 소비전력 | 3.72 |
빠른 스펙
해상도4000 × 4000
속도7.25 fps
인터페이스GigE
셔터Global
센서HK
