HikvisionAreaScan

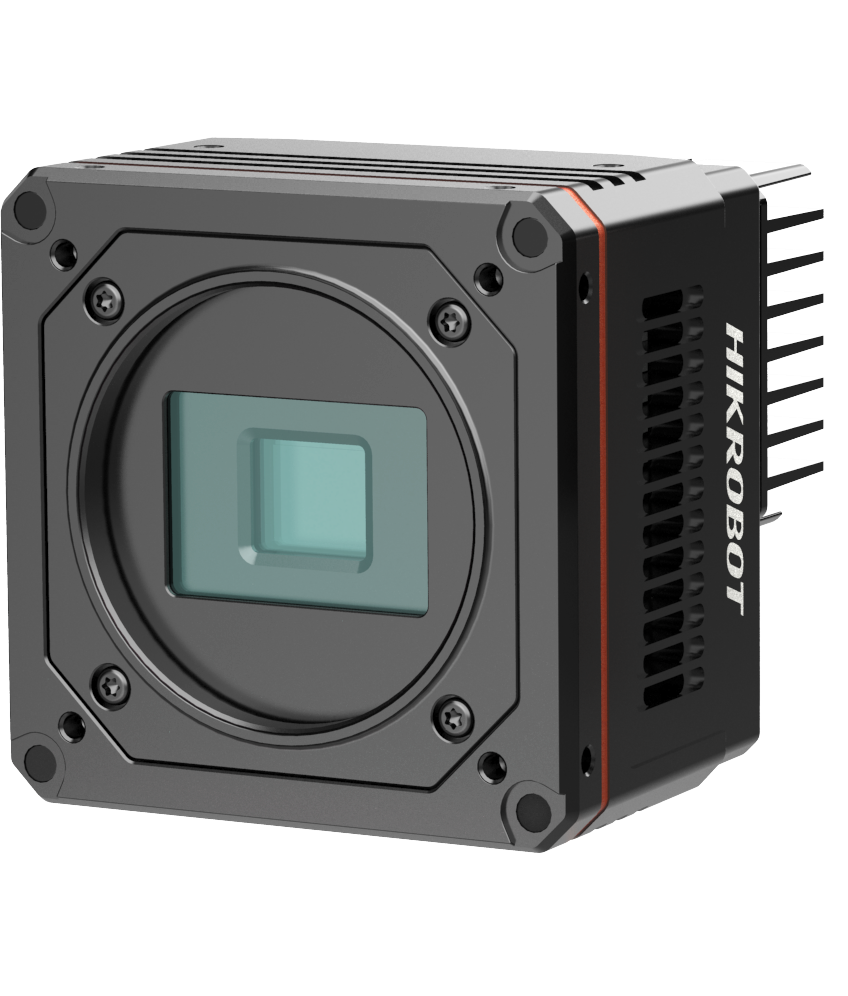

MV-CH240-10TM-C-NN
Key Feature Resolution of 5328 × 4600, and pixel size of 2.74. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc. Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters. Compact design with mounting holes on panels for flexible mounting. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CH
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX540 |
| 센서 크기 | 14.6 x 12.6 mm |
| 픽셀 크기 | 2.74 µm |
| 해상도 | 5328 × 4600 |
| 속도 | 35.1 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | 10GigE |
| 마운트 | C |
| 제품 크기 | 84 × 84 × 92.5 (3.3" × 3.3" × 3.6") |
| 무게 | Approx. 600 g (1.3 lb) |
| 전원 | 9 VDC to 24 VDC |
| 소비전력 | 10 |
빠른 스펙
해상도5328 × 4600
속도35.1 fps
인터페이스10GigE
셔터Global
센서Sony® IMX540
