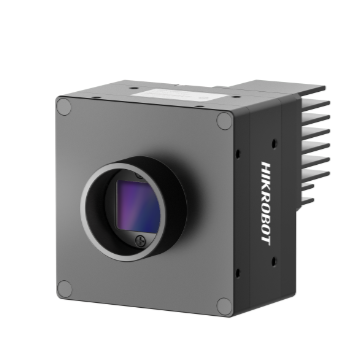

HikvisionAreaScan
MV-CH240-10YM-C-NN
Key Feature Resolution of 5312 × 4608, pixel size of 2.74. Adopts Global CMOS sensor to provide high dynamic range, SNR, and high-quality image. Adopts fan-less design with low power consumption, ensuring stable capturing. Adopts CXP-12 interface to transmit data. Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CH240-10YM-C-NN Dimension *The data herein may vary based on the environm
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX935 |
| 센서 크기 | 14.6 x 12.6 mm |
| 픽셀 크기 | 2.74 µm |
| 해상도 | 5312 × 4608 |
| 속도 | 191.7 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | CoaXPress |
| 마운트 | C |
| 제품 크기 | 60 × 60 × 56.5 (2.4" × 2.4" × 2.2") |
| 무게 | Approx. 255 g (0.6 lb.) |
| 전원 | 9 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP |
| 소비전력 | 11 |
빠른 스펙
해상도5312 × 4608
속도191.7 fps
인터페이스CoaXPress
셔터Global
센서Sony® IMX935
