HikvisionAreaScan

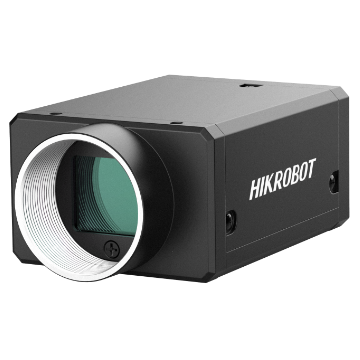

MV-CH250-60UC

Key Feature Supports auto adjustment of gain, Gamma, and LUT correction, etc. Supports software trigger, hardware trigger, and anyway mode. Compact design with mounting holes on panels for flexible mounting from 4 sides. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.   Available Model MV-CH250-60UC Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not a

MV-CH250-60UC

상세 스펙

시리즈CH AreaScan
제조사Hikvision
센서Stacked BSI
센서 크기12.8 x 12.8 mm
픽셀 크기2.5 µm
해상도5120 × 5120
속도14.8 fps
셔터Rolling
컬러/모노Color
인터페이스USB3.0
마운트C
제품 크기29 × 44 × 59 (1.1" × 1.7" × 2.3")
무게Approx. 103.8 g (0.2 lb.)
전원9 VDC to 24 VDC, supports USB power supply
소비전력5.5

동일 센서 제품

Stacked BSI

제품 문의

견적 및 기술 문의는 아래로 연락해 주세요.

견적 문의하기sales@dnsvts.com

다운로드

빠른 스펙

해상도5120 × 5120
속도14.8 fps
인터페이스USB3.0
셔터Rolling
센서Stacked BSI
