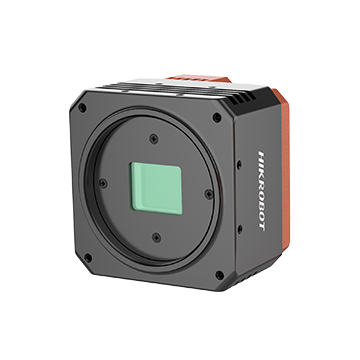

MV-CH250-90TM-M58S-NF

Key Feature Resolution of 5120 × 5120, pixel size of 2.5. Adopts 10 GigE interface providing maximum transmission distance of 100 meters. Supports adjustment for exposure time, gain, Look-Up Table (LUT), Gamma correction, etc. Mounting holes on panels for flexible installation. Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.   Available Model MV-CH250-90TM-M58S-NF Dimension *The data herein may vary based on the environme

상세 스펙

시리즈	CH AreaScan
제조사	Hikvision
센서 제조사	Gpixel
센서	Gpixel GMAX0505
센서 크기	12.8 x 12.8 mm
픽셀 크기	2.5 µm
해상도	5120 × 5120
속도	41.5 fps
셔터	Global
컬러/모노	Mono
인터페이스	10GigE
마운트	M58
제품 크기	74 × 74 × 78.8 (2.9" × 2.9" × 3.1")
무게	Approx. 550 g (1.2 lb.)
전원	9 VDC to 24 VDC
소비전력	9.7
