HikvisionAreaScan

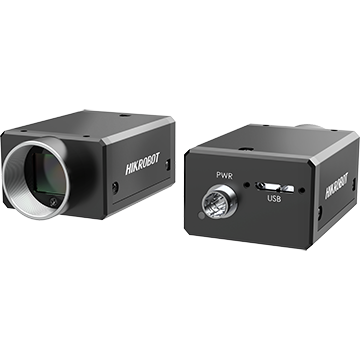

MV-CH250-90UM V4
Key Feature Resolution of 5120 × 5120, pixel size of 2.5. Supports LSC correction, binning, image reverse, etc. Supports hardware trigger, software trigger, and free run. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard. Available Model MV-CH250-90UM V4 Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising ther
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Gpixel |
| 센서 | Gpixel GMAX0505 |
| 센서 크기 | 12.8 x 12.8 mm |
| 픽셀 크기 | 2.5 µm |
| 해상도 | 5120 × 5120 |
| 속도 | 14 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 44 × 59 (1.1" × 1.7" × 2.3") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 12 VDC to 24 VDC, supports USB3.0 power supply |
| 소비전력 | 3.6 |
빠른 스펙
해상도5120 × 5120
속도14 fps
인터페이스USB3.0
셔터Global
센서Gpixel GMAX0505
