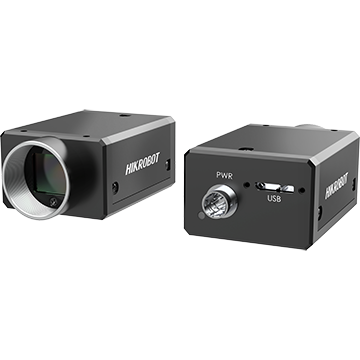

MV-CH250-90UN V4

Key Feature Resolution of 5120 × 5120, pixel size of 2.5. Supports LSC correction, binning, image reverse, etc. Supports hardware trigger, software trigger, and free run. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.   Available Model MV-CH250-90UN V4 Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising ther

상세 스펙

시리즈	CH AreaScan
제조사	Hikvision
센서 제조사	Gpixel
센서	Gpixel GMAX0505
센서 크기	12.8 x 12.8 mm
픽셀 크기	2.5 µm
해상도	5120 × 5120
속도	14 fps
셔터	Global
컬러/모노	Mono
인터페이스	USB3.0
마운트	C
제품 크기	29 × 44 × 59 (1.1" × 1.7" × 2.3")
무게	Approx. 100 g (0.2 lb.)
전원	12 VDC to 24 VDC, supports USB3.0 power supply
소비전력	3.6
