HikvisionAreaScan

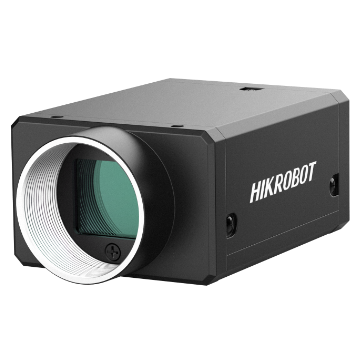

MV-CH250-90VC
Key Feature Supports manual adjustment of gain, LUT, Gamma correction, etc. Adopts dual USB 3.0 interfaces to transmit data. Supports hardware trigger, software trigger, and free run. Supports flexible installation via the installation holes. Adopts compact design for small spatial installation. Compatible GenlCam Standard. Available Model MV-CH250-90VC Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the conseq
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Gpixel |
| 센서 | Gpixel GMAX0505 |
| 센서 크기 | 12.8 x 12.8 mm |
| 픽셀 크기 | 2.5 µm |
| 해상도 | 5120 × 5120 |
| 속도 | 30 fps |
| 셔터 | Global |
| 컬러/모노 | Color |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 44 × 59 (1.1" × 1.7" × 2.3") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| 소비전력 | 5.5 |
빠른 스펙
해상도5120 × 5120
속도30 fps
인터페이스USB3.0
셔터Global
센서Gpixel GMAX0505
