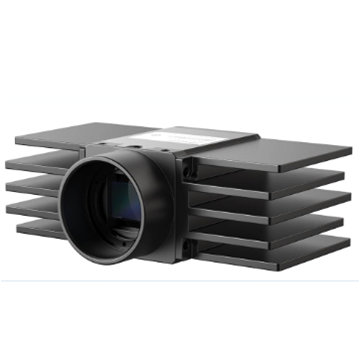

MV-CH250-90Y1M-NH

Key Feature Resolution of 5120 × 5120, pixel size of 2.5. Supports Binning, reverse image, and ROI settings. Adopts CXP-12 interface to transmit data. Compatible with C lenses to reduce costs. Compatible with CoaXPress Protocol, GenlCam Standard.   Available Model MV-CH250-90Y1M-NH Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

상세 스펙

시리즈	CH AreaScan
제조사	Hikvision
센서 제조사	Gpixel
센서	Gpixel GMAX0505
센서 크기	12.8 x 12.8 mm
픽셀 크기	2.5 µm
해상도	5120 × 5120
속도	41.3 fps
셔터	Global
컬러/모노	Mono
인터페이스	CoaXPress
마운트	C
제품 크기	29 × 85 × 42 (1.1" × 3.3" × 1.7")
무게	Approx. 154.5 g (0.3 lb.)
전원	9 VDC to 24 VDC, supports PoCXP
소비전력	3.9
