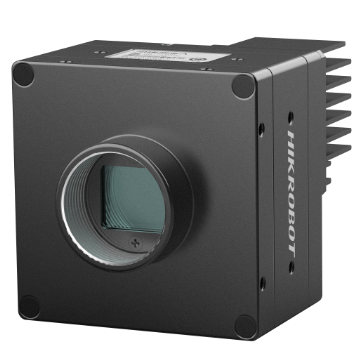

MV-CH250-90YC-C-NN

Key Feature Resolution of 5120 × 5120, pixel size of 2.5. Adopts Global CMOS sensor to provide high dynamic range and high-quality image. Adopts CXP-12 interface to transmit data. Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.   Available Model MV-CH250-90YC-C-NN Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences

상세 스펙

시리즈	CH AreaScan
제조사	Hikvision
센서 제조사	Gpixel
센서	Gpixel GMAX0505
센서 크기	12.8 x 12.8 mm
픽셀 크기	2.5 µm
해상도	5120 × 5120
속도	150 fps
셔터	Global
컬러/모노	Mono
인터페이스	CoaXPress
마운트	C
제품 크기	60 × 60 × 59 (2.4" × 2.4" × 2.3") (cooling fins are optional)
무게	C without fan, approx. 280 g (0.6 lb.)
전원	12 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP
소비전력	10
