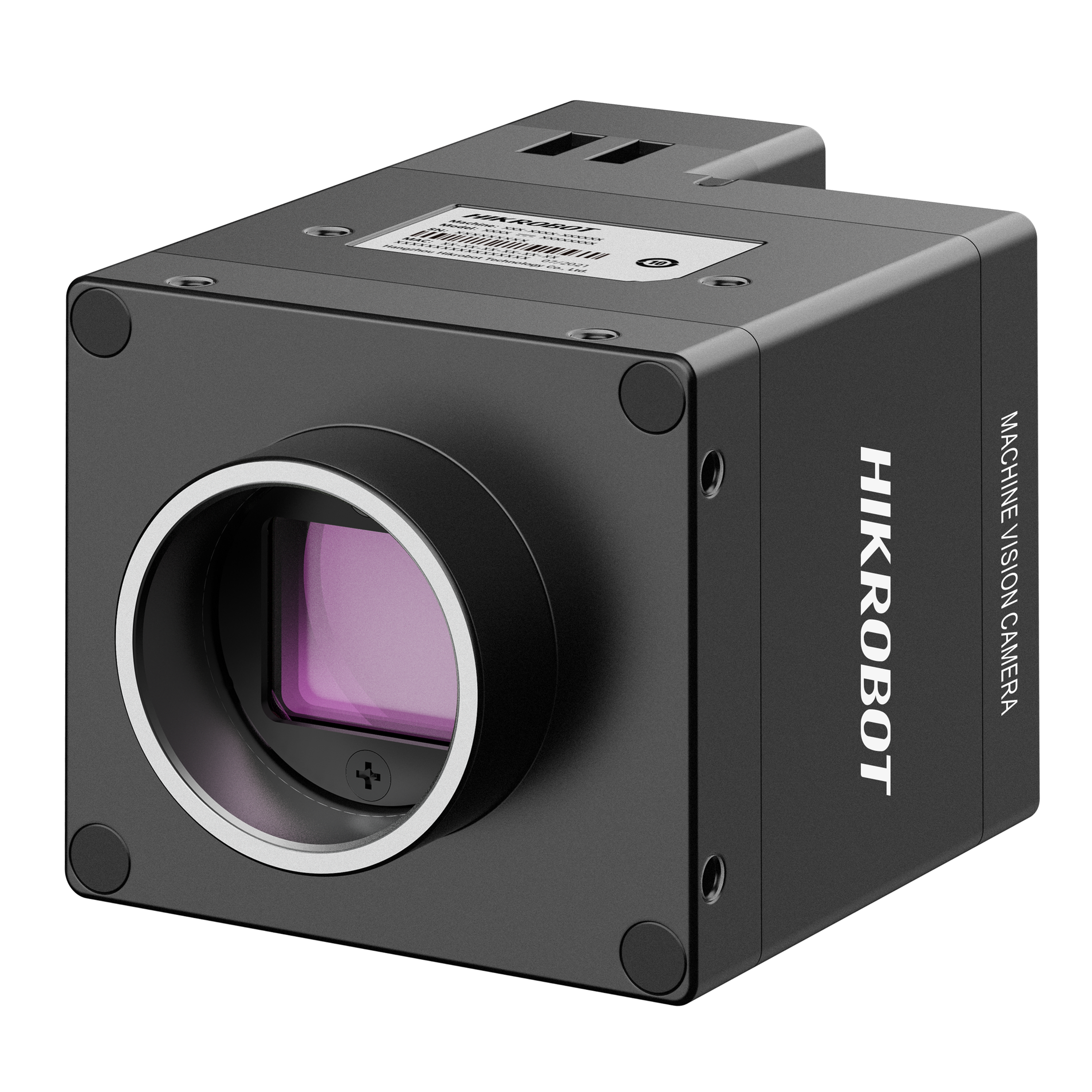

HikvisionAreaScan
MV-CH250-92TC-C-NF V2
Key Feature Resolution of 5120 × 5120, pixel size of 2.5. Compatible with C lens. Adopts 10 GigE interface providing maximum transmission distance of 100 meters. Mounting holes on panels for flexible installation. Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols. Available Model MV-CH250-92TC-C-NF V2 Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall n
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Gpixel |
| 센서 | Gpixel GMAX0505 |
| 센서 크기 | 12.8 x 12.8 mm |
| 픽셀 크기 | 2.5 µm |
| 해상도 | 5120 × 5120 |
| 속도 | 41.5 fps |
| 셔터 | Global |
| 컬러/모노 | Color |
| 인터페이스 | 10GigE |
| 마운트 | C |
| 제품 크기 | 50 × 45 × 68.6 (2.0" × 1.8" × 2.7") |
| 무게 | Approx. 212 g (0.5 lb.) |
| 전원 | 9 VDC to 24 VDC |
| 소비전력 | 9.4 |
빠른 스펙
해상도5120 × 5120
속도41.5 fps
인터페이스10GigE
셔터Global
센서Gpixel GMAX0505
