HikvisionAreaScan

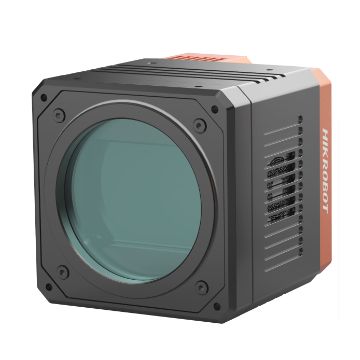

MV-CH6040-10XM-M72-NF
Key Feature Resolution of 28416 × 21280, pixel size of 3.76. Supports 151 and 604 MP mode and adopts ISP algorithm to improve image quality. Adopts Rolling CMOS sensor to provide high dynamic range and low noise. Supports FFC correction and LSC correction. Supports 16-bit ADC output with high-precision sampling. Adopts CXP-6 interface to transmit data. Compatible with CoaXPress Protocol and GenlCam Standard, and third-party software based on the protocol and standard.
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX411 |
| 센서 크기 | 106.8 x 80.0 mm |
| 픽셀 크기 | 3.76 µm |
| 해상도 | 28416 × 21280 |
| 속도 | 1.45 fps |
| 셔터 | Rolling |
| 컬러/모노 | Mono |
| 인터페이스 | CoaXPress |
| 마운트 | M72 |
| 제품 크기 | 100 × 100 × 128.5 (3.9" × 3.9" × 5.1") |
| 무게 | Approx. 1.4 kg (3.1 lb.) |
| 전원 | 24 VDC |
| 소비전력 | 15 |
빠른 스펙
해상도28416 × 21280
속도1.45 fps
인터페이스CoaXPress
셔터Rolling
센서Sony® IMX411
