HikvisionAreaScan

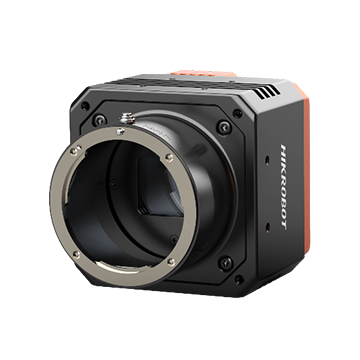

MV-CH650-90TM-F-NF V2
Key Feature Resolution of 9344 × 7000, and pixel size of 3.2. Adopts 10 GigE interface, compatible with GigE. Supports auto or manual adjustment of white balance, exposure time, and manual adjustment of gain, LUT, Gamma correction, etc. Compact design with mounting holes on panels for flexible mounting. Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols. Available Model MV-CH650-90TM-F-NF V2 Dimension *The data herein may v
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Gpixel |
| 센서 | Gpixel GMAX3265 |
| 센서 크기 | 29.9 x 22.4 mm |
| 픽셀 크기 | 3.2 µm |
| 해상도 | 9344 × 7000 |
| 속도 | 17.4 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | 10GigE |
| 마운트 | F |
| 제품 크기 | F with fan: 74 × 74 × 84.8 (2.9" × 2.9" × 3.3") |
| 무게 | F with fan: approx. 600 g (1.3 lb.) |
| 전원 | 9 VDC to 24 VDC |
| 소비전력 | 11.8 |
빠른 스펙
해상도9344 × 7000
속도17.4 fps
인터페이스10GigE
셔터Global
센서Gpixel GMAX3265
