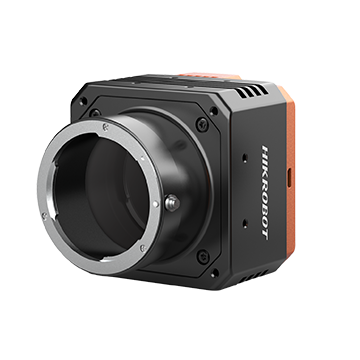

MV-CH650-90XC-M58S-NF

Key Feature Resolution of 9344 × 7000, and pixel size of 3.2. Adopts Global CMOS to provide high dynamic range, SNR, and high-quality image. Adopts CXP-6 interface to transmit data. Compatible with CoaXPress Protocol and GenlCam Standard.   Available Model MV-CH650-90XC-M58S-NF Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

상세 스펙

시리즈	CH AreaScan
제조사	Hikvision
센서 제조사	Gpixel
센서	Gpixel GMAX3265
센서 크기	29.9 x 22.4 mm
픽셀 크기	3.2 µm
해상도	9344 × 7000
속도	31.5 fps
셔터	Global
컬러/모노	Color
인터페이스	CoaXPress
마운트	M58
제품 크기	M58-mount with fan: 74 × 74 × 70.4 (2.9" × 2.9" × 2.8")
무게	M58-mount with fan: approx. 470 g (1.0 lb.)
전원	9 VDC to 24 VDC
소비전력	10.2
