HikvisionAreaScan

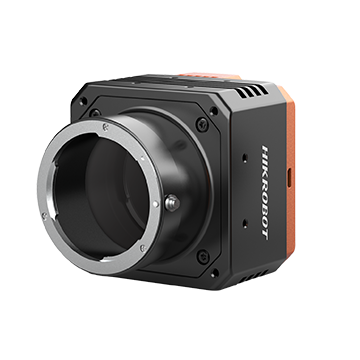

MV-CH650-90XM-F-NF
Key Feature Resolution of 9344 × 7000, and pixel size of 3.2. Adopts Global CMOS to provide high dynamic range, SNR, and high-quality image. Adopts CXP-6 interface to transmit data. Compatible with CoaXPress Protocol and GenlCam Standard. Available Model MV-CH650-90XM-F-NF Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Gpixel |
| 센서 | Gpixel GMAX3265 |
| 센서 크기 | 29.9 x 22.4 mm |
| 픽셀 크기 | 3.2 µm |
| 해상도 | 9344 × 7000 |
| 속도 | 31.5 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | CoaXPress |
| 마운트 | F |
| 제품 크기 | F with fan: 74 × 74 × 76.4 (2.9" × 2.9" × 3.0") |
| 무게 | F with fan: approx. 500 g (1.1 lb.) |
| 전원 | 9 VDC to 24 VDC |
| 소비전력 | 10.5 |
빠른 스펙
해상도9344 × 7000
속도31.5 fps
인터페이스CoaXPress
셔터Global
센서Gpixel GMAX3265
