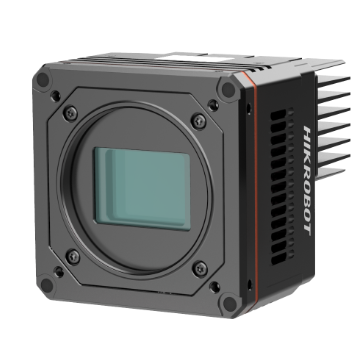

MV-CH650-90YC-F-NN

Key Feature Resolution of 9344 × 7000, pixel size of 3.2. Adopts Global CMOS to provide high dynamic range, SNR, and high-quality images. Supports LSC sequencer polling function. Adopts CXP-12 interface to transmit data. Supports the flat field correction. Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.   Available Model MV-CH650-90YC-F-NN Dimension *The data herein may vary based on the environment, obje

상세 스펙

시리즈	CH AreaScan
제조사	Hikvision
센서 제조사	Gpixel
센서	Gpixel GMAX3265
센서 크기	29.9 x 22.4 mm
픽셀 크기	3.2 µm
해상도	9344 × 7000
속도	71 fps
셔터	Global
컬러/모노	Mono
인터페이스	CoaXPress
마운트	M58
제품 크기	84 × 84 × 92.5 (3.3" × 3.3" × 3.6")
무게	Approx. 650 g (1.4 lb.)
전원	24 VDC, CXP-0 and CXP-1 connectors support PoCXP
소비전력	13.0
