HikvisionAreaScan

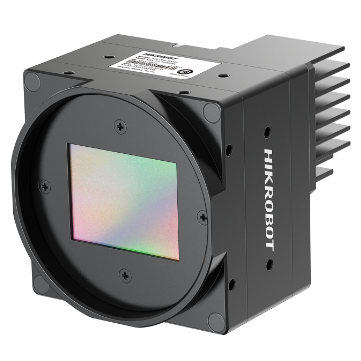

MV-CH650-90YM-M58S-NN V2
Key Feature Resolution of 9344 × 7000, pixel size of 3.2. Adopts Global CMOS to provide high dynamic range, SNR, and high-quality images. Adopts CXP-12 interface to transmit data. Compact design, low power consumption without cooling fan. Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CH650-90YM-M58S-NN V2 Dimension *The data herein may vary based on the environment, objects and othe
상세 스펙
| 시리즈 | CH AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Gpixel |
| 센서 | Gpixel GMAX3265 |
| 센서 크기 | 29.9 x 22.4 mm |
| 픽셀 크기 | 3.2 µm |
| 해상도 | 9344 × 7000 |
| 속도 | 71 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | CoaXPress |
| 마운트 | M58 |
| 제품 크기 | 60 × 60 × 59 (2.4" × 2.4" × 2.3") (cooling fins are optional) |
| 무게 | Approx. 285 g (0.6 lb.) |
| 전원 | 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| 소비전력 | 14.4 |
빠른 스펙
해상도9344 × 7000
속도71 fps
인터페이스CoaXPress
셔터Global
센서Gpixel GMAX3265
