HikvisionAreaScan

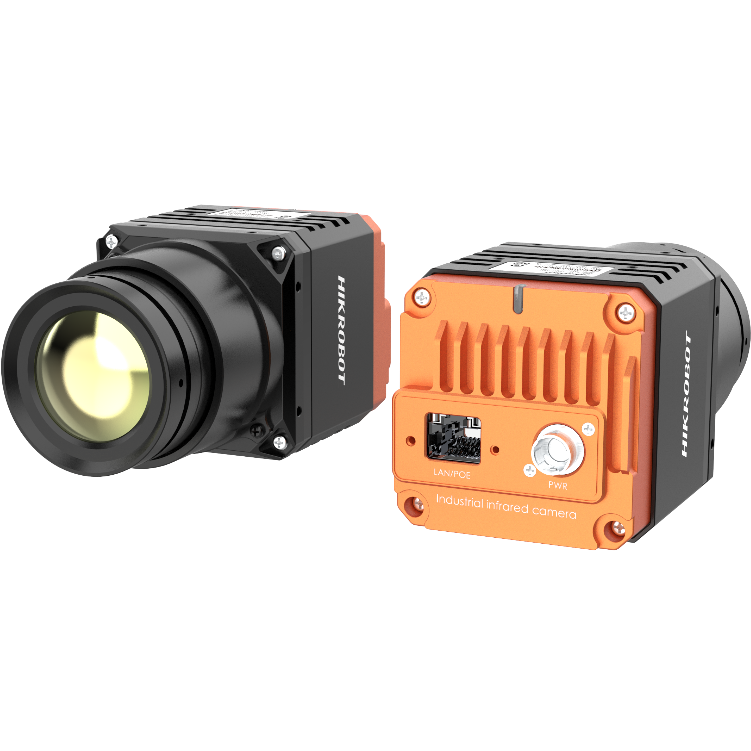

MV-CI003-GL-N6
Key Feature Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP. Supports multiple palette modes, grayscale detection, image adjustment, etc. Compact design with mounting holes on panels for flexible mounting from 4 sides. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard. Available Model MV-CI003-GL-N6 Dimension *The data herein may vary based on the environment, objects and other
상세 스펙
| 시리즈 | CI Series Infrared Camera |
| 제조사 | Hikvision |
| 센서 크기 | 10.9 x 8.7 mm |
| 픽셀 크기 | 17 µm |
| 해상도 | 640 × 512 |
| 속도 | 50 fps |
| 인터페이스 | GigE |
| 마운트 | M34 |
| 제품 크기 | 58 × 58 × 115.5 (2.3" × 2.3" × 4.5") |
| 무게 | Approx. 275 g (0.6 lb.) |
| 전원 | 9 VDC to 24 VDC, supports PoE |
| 소비전력 | 2.5 |
빠른 스펙
해상도640 × 512
속도50 fps
인터페이스GigE
셔터-
센서-
