HikvisionAreaScan

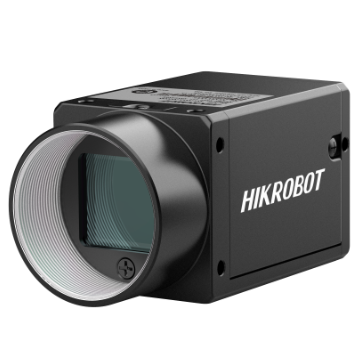

MV-CI050-Y1S-NN
Key Feature Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm. Supports multiple ISP functions like digital noise reduction, contrast ratio, etc. Adopts compact structure and design to meet spatial requirements. Adopts CXP-12 interface to transmit data. Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CI050-Y1S-NN Dimension *The data herein may vary based on the environment, objects a
상세 스펙
| 시리즈 | CI Series Infrared Camera |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX992 |
| 센서 크기 | 8.9 x 7.1 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 2592 × 2056 |
| 속도 | 120 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | CoaXPress |
| 마운트 | C |
| 제품 크기 | Device with heat sink: 29 × 85.6 × 42 (1.1" × 3.4" × 1.7") Device without heat sink: 29 × 29 × 42 (1.1" × 1.1" × 1.7") |
| 무게 | Device with heat sink: Approx. 170 g (0.4 lb.) Device without heat sink: Approx. 90 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports PoCXP |
| 소비전력 | 4.2 |
빠른 스펙
해상도2592 × 2056
속도120 fps
인터페이스CoaXPress
셔터Global
센서Sony® IMX992
