홈›Camera›MV-CS004-11GM
HikvisionAreaScan

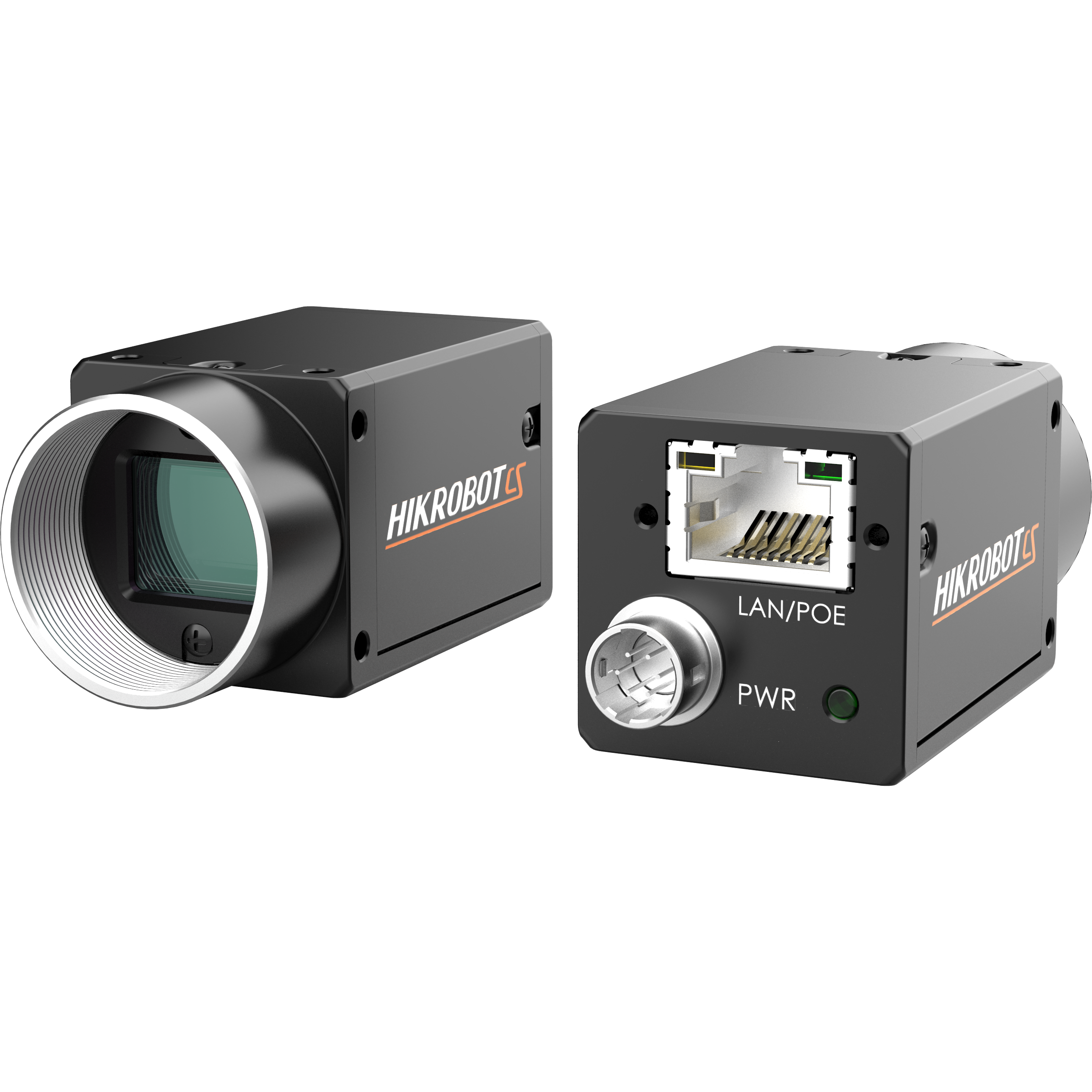

MV-CS004-11GM

Key Feature Adopts brand new design to reduce power consumption. Compact design with mounting holes on panels for flexible mounting from 4 sides. Supports sequencer, contrast ratio, Gamma correction, white balance, etc. Supports hard trigger, software trigger, free run, etc. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.   Available Model MV-CS004-11GM Dimension *The data herein may vary based on the environment, obj

MV-CS004-11GM

상세 스펙

시리즈CS AreaScan
제조사Hikvision
센서 제조사Sony
센서Sony® IMX287
센서 크기5.0 x 3.7 mm
픽셀 크기6.9 µm
해상도720 × 540
속도312.9 fps
셔터Global
컬러/모노Mono
인터페이스GigE
마운트C
제품 크기29 × 29 × 42 (1.1" × 1.1" × 1.2")
무게Approx. 100 g (0.22 lb.)
전원9 VDC to 24 VDC, supports PoE
소비전력2.2

동일 센서 제품

Sony® IMX287

제품 문의

견적 및 기술 문의는 아래로 연락해 주세요.

견적 문의하기sales@dnsvts.com

다운로드

빠른 스펙

해상도720 × 540
속도312.9 fps
인터페이스GigE
셔터Global
센서Sony® IMX287
