HikvisionAreaScan

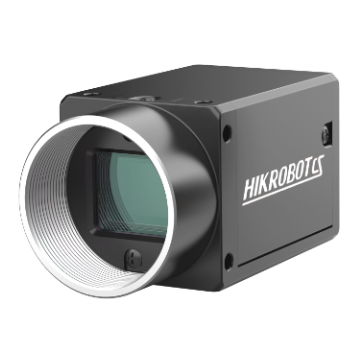

MV-CS013-60GN
Key Feature Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, LUT, etc., and supports Sequencer function. Compact design with mounting holes on panels for flexible mounting from 4 sides. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CS013-60GN Dimension
상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 | Stacked BSI |
| 센서 크기 | 8.4 x 7.1 mm |
| 픽셀 크기 | 6.9 µm |
| 해상도 | 1224 × 1024 |
| 속도 | 59.2 fps |
| 셔터 | Global |
| 컬러/모노 | NIR |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 42 (1.1" × 1.1" × 1.7") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports PoE |
| 소비전력 | 1.9 |
빠른 스펙
해상도1224 × 1024
속도59.2 fps
인터페이스GigE
셔터Global
센서Stacked BSI
