HikvisionAreaScan

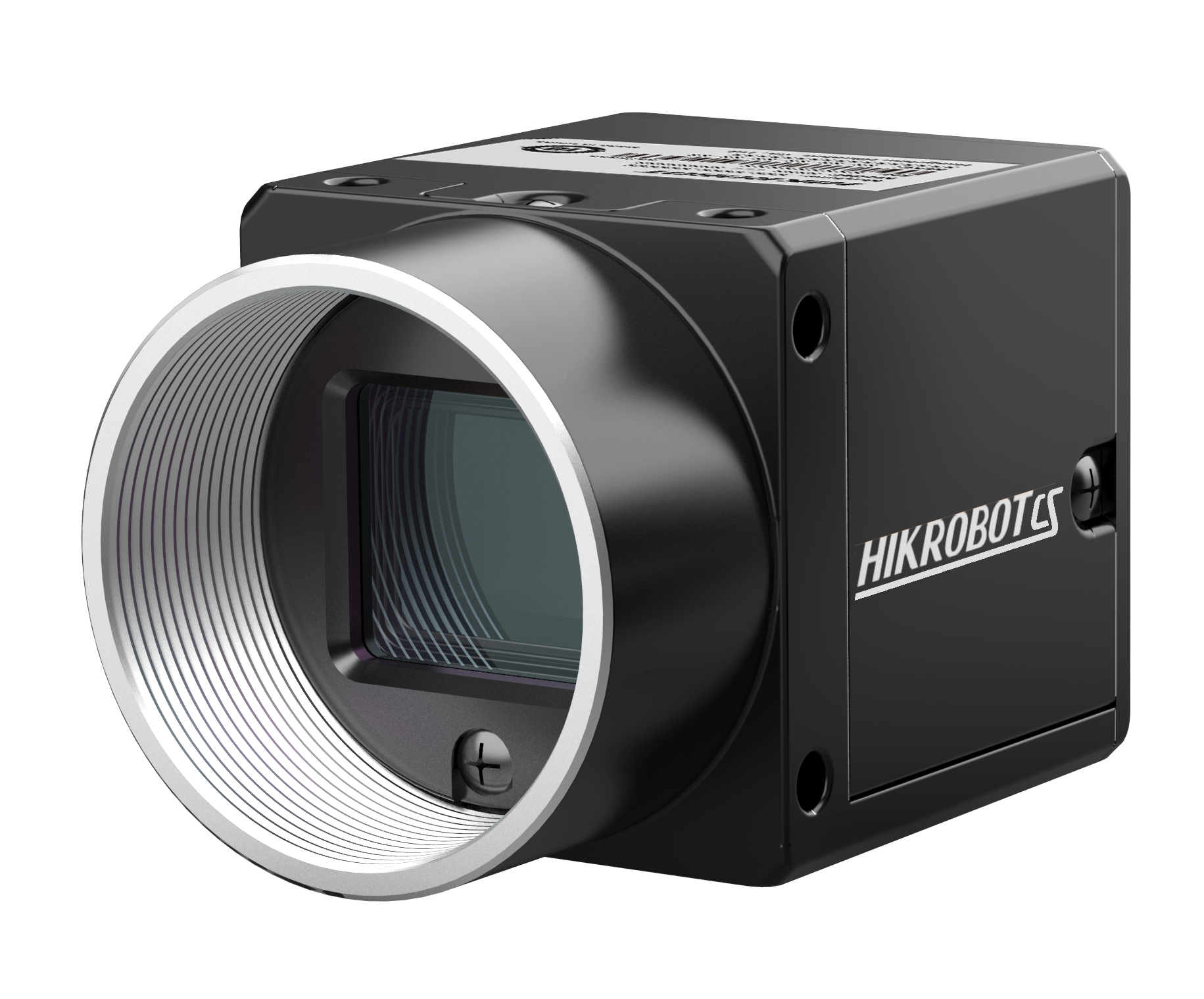

MV-CS013-80UC
Key Feature Adopts brand new design to reduce power consumption. Supports auto and manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc. Supports customized ROI, horizontal and vertical reverse image output. Adopts compact design for flexible installation. Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard. Available Model MV-CS013-80UC Dimension *The data herein may vary based on the env
상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 | SS |
| 센서 크기 | 5.1 x 4.1 mm |
| 픽셀 크기 | 4 µm |
| 해상도 | 1280 × 1024 |
| 속도 | 240.4 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 80 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB power supply |
| 소비전력 | 1.3 |
빠른 스펙
해상도1280 × 1024
속도240.4 fps
인터페이스USB3.0
셔터Global
센서SS
