HikvisionAreaScan

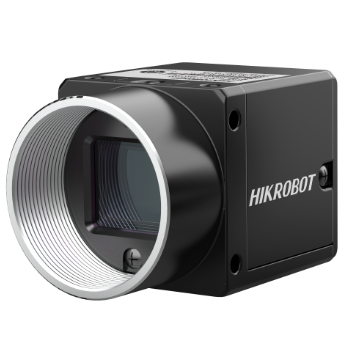

MV-CS020-10UM
Key Feature Adopts brand new design to reduce power consumption. Supports sequencer, passive transmission, etc. Color camera supports white balance, CCM, Super Palette, Super Bayer, etc. Supports hard trigger, software trigger, free run, etc. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard. Available Model MV-CS020-10UM Dimension *The data herein may vary based on the environment, objects and other various factors, an

상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 제조사 | Sony |
| 센서 | Sony® IMX430 |
| 센서 크기 | 7.3 x 5.6 mm |
| 픽셀 크기 | 4.5 µm |
| 해상도 | 1624 × 1240 |
| 속도 | 90 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | USB3.0 |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 30 (1.1" × 1.1" × 1.2") |
| 무게 | Approx. 80 g (0.18 lb.) |
| 전원 | 9 VDC to 24 VDC, supports USB power supply |
| 소비전력 | 2.3 |
빠른 스펙
해상도1624 × 1240
속도90 fps
인터페이스USB3.0
셔터Global
센서Sony® IMX430
