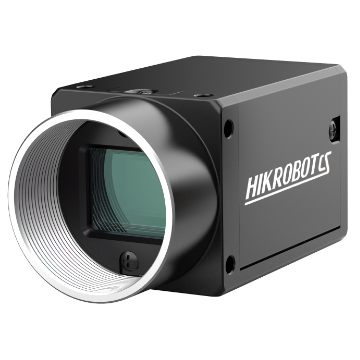

HikvisionAreaScan
MV-CS020-60GM
Key Feature Adopts brand new design to reduce power consumption. Supports auto or manual adjustment for gain, exposure control, white balance, LUT, Gamma correction, etc. Supports CCM to provide high-quality images. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compact design with mounting holes on panels for flexible mounting from 4 sides. Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 | Stacked BSI |
| 센서 크기 | 5.6 x 4.3 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 1624 × 1240 |
| 속도 | 60.3 fps |
| 셔터 | Global |
| 컬러/모노 | Mono |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 42 (1.1" × 1.1" × 1.7") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports PoE |
| 소비전력 | 1.8 |
빠른 스펙
해상도1624 × 1240
속도60.3 fps
인터페이스GigE
셔터Global
센서Stacked BSI
