홈›Camera›MV-CS028-10UM
HikvisionAreaScan

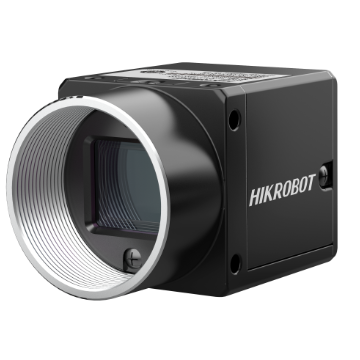

MV-CS028-10UM

Key Feature Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, LUT, Gamma correction, contrast ratio, etc. Compact design with mounting holes on panels for flexible mounting from 4 sides. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.   Available Model MV-CS028-10UM Dimension *The data herein may vary based on the environment, objects and other various facto

MV-CS028-10UM

상세 스펙

시리즈CS AreaScan
제조사Hikvision
센서 제조사Sony
센서Sony® IMX421
센서 크기8.7 x 6.6 mm
픽셀 크기4.5 µm
해상도1936 × 1464
속도132.2 fps
셔터Global
컬러/모노Mono
인터페이스USB3.0
마운트C
제품 크기29 × 29 × 30 (1.1" × 1.1" × 1.2")
무게Approx. 80 g (0.18 lb.)
전원9 VDC to 24 VDC, supports USB3.0 power supply
소비전력2.8

제품 문의

견적 및 기술 문의는 아래로 연락해 주세요.

견적 문의하기sales@dnsvts.com

다운로드

빠른 스펙

해상도1936 × 1464
속도132.2 fps
인터페이스USB3.0
셔터Global
센서Sony® IMX421
