HikvisionAreaScan

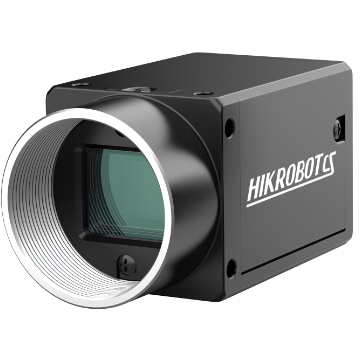

MV-CS032-60GC
Key Feature Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc., and supports Sequencer function. Supports ISP functions like CCM, Super Palette, and Super Bayer to provide high-quality images. Compact design with mounting holes on panels for flexible mounting from 4 sides. Adopts GigE interface and max. transmission distance of 100 meters without relay. Compatible with GigE Vision V2.0 Protoco
상세 스펙
| 시리즈 | CS AreaScan |
| 제조사 | Hikvision |
| 센서 | Stacked BSI |
| 센서 크기 | 7.1 x 5.3 mm |
| 픽셀 크기 | 3.45 µm |
| 해상도 | 2048 × 1536 |
| 속도 | 38.6 fps |
| 셔터 | Global |
| 컬러/모노 | Color |
| 인터페이스 | GigE |
| 마운트 | C |
| 제품 크기 | 29 × 29 × 42 (1.1" × 1.1" × 1.7") |
| 무게 | Approx. 100 g (0.2 lb.) |
| 전원 | 9 VDC to 24 VDC, supports PoE |
| 소비전력 | 2.3 |
빠른 스펙
해상도2048 × 1536
속도38.6 fps
인터페이스GigE
셔터Global
센서Stacked BSI
