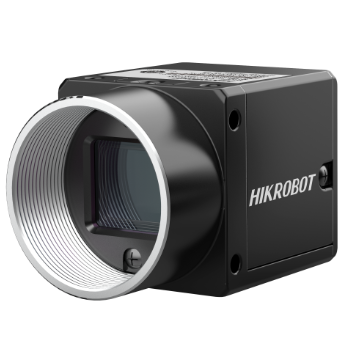

MV-CS040-A0UC

Key Feature Adopts Global CMOS sensor providing high signal-to-noise ratio, wide dynamic range and high quality images. Resolution of 2048 × 2048, pixel size of 5.5. Supports hardware trigger, software trigger, and free run. Compact design with mounting holes on panels for flexible mounting from 4 sides. Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.   Available Model MV-CS040-A0UC Dimension *The d

상세 스펙

시리즈	CS AreaScan
제조사	Hikvision
센서 크기	11.3 x 11.3 mm
픽셀 크기	5.5 µm
해상도	2048 × 2048
속도	90.1 fps
셔터	Global
컬러/모노	Color
인터페이스	USB3.0
마운트	C
제품 크기	29 × 29 × 30 (1.1" × 1.1" × 1.2")
무게	Approx. 88 g (0.2 lb.)
전원	9 VDC to 24 VDC, supports USB 3.0 power supply
소비전력	2.4
